Description
gear motor deutsch Spur gear motor SEV-MV672-160M-11kW-123rpmSpur gear motor (gearbox with IEC flange to the electric motor), Voltage = 3 x 400 690 V 50 Hz, 3 x 460 795 V 60 Hz ( 5% according to VDE 0530), frequency = 50 60 Hertz. Power= 11. 0 kW, Speed= 123 rpm, Gear ratio (i)= 11. 97, Torque (M)= 829 Nm, Service factor (fs)= 3. 8, Design= B3 (B5 at extra cost), shaft= 70mm x 140mm, weight= 296. 0kg, paint finish= RAL5010. Temperature sensor= 3 x PTC thermistors, operating mode= S1 100% ED, terminal box= top

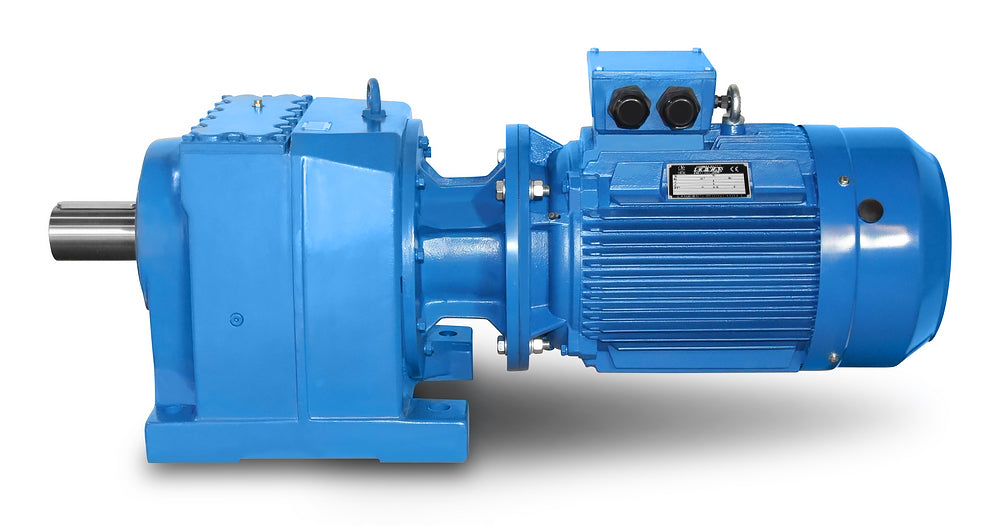

Spur gear motor (gearbox with IEC flange to the electric motor),
Voltage = 3 x 400/690 V-50 Hz, 3 x 460/795 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.
Power= 11.0 kW, Speed= 123 rpm, Gear ratio (i)= 11.97, Torque (M²)= 829 Nm, Service factor (fs)= 3.8,
Design= B3 (B5 at extra cost), shaft= 70mm x 140mm, weight= 296.0kg, paint finish= RAL5010.
Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).
The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.
The spur gear can be operated in both directions of rotation and is filled with oil upon delivery.
According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified
To be carried out by qualified personnel. For modifications or special designs, please send an inquiry.
All product photos are non-binding examples! Technical changes reserved.
When ordering, please select the desired installation position and design!
